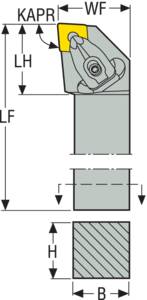

In stock Home DC Other DCs DCLNR-20-4D GDG code B40 - TURNING Item number 02588893 EDP number 34513 Full Specification Cutting data Workpiece Side (361) Accessories | Spare Parts (11) Full Specification Name Description Value B Shank width 1.250 in Barcode Product barcode 00662885148071 CSP Coolant supply property No internal coolant CTMS Connection text machine side 31.75 CTWS Connection text workpiece side CN..1204../CN..43. GAMO Rake angle orthogonal -6.000 deg GTIN Global trade item number 00662885148071 H Height of tool holder shank 1.250 in HAND Direction of cutting R ICS Insert clamping system D KAPR Tool cutting edge angle 95.000 deg KAPRC Tool Cutting Edge Angle Code L LAMS Inclination angle -6.000 deg LF Functional length 6.000 in LH Head length 1.299 in RMPX Ramping angle maximum 0.000 deg SC Insert shape code C ShankType Shank type Square shank VER Version (Internal/External/Both) External WF Functional width 1.500 in Weight Net weight 2.635 lb Illustrations shown may vary from actual product Included in delivery 1/4HEX-T15PX50 Shim/clamp key C04008-T15P Shim screw CD12-S Floating wedge clamp DCN444 Insert shim FP2012 Clamp pin L85021-T15P Clamp screw S6912 Spring Tooling and cutting data on the go Find the right tool within minutes Automate and control tooling and suppli... Automize & Digitalize your Order Manage... Contact your local sales representative
