Ball Bearing Location

Steering Knuckle Production

Ball Bearing Location:
Your Challenge:	Improve productivity and reduce tool cost per operation in roughing.

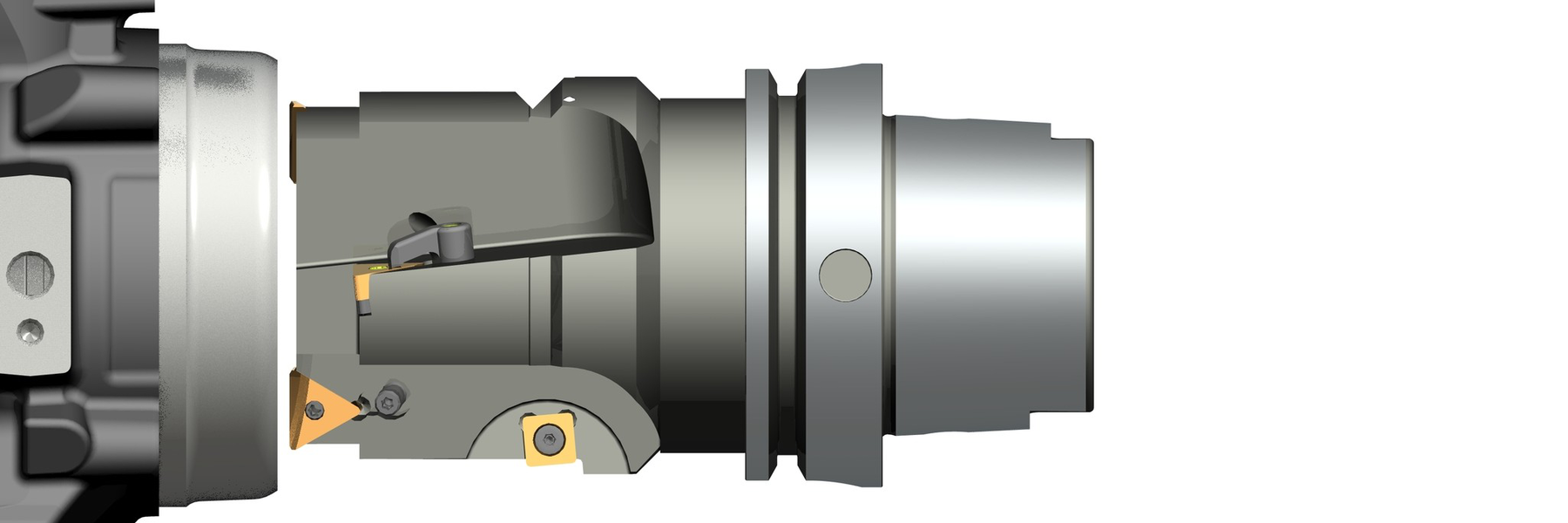

Our proven Solution:	Step rough boring tool using double-sided ISO / ANSI inserts. Seco has developed a complete range of new Duratomic^® grades which allow application of high cutting parameters on forged steel with TP grades and on nodular cast iron with TK grades.

Ball Bearing Location:
Your Challenge:	Improve productivity and reduce tool cost per operation in roughing and semi-finishing.
Our proven Solution:	Roughing and semi-finishing with a step boring tool using adjustable cartridges fitted with positive ISO / ANSI inserts.For a strong balance of speed and economy on aluminium steering knuckles, Seco recommends use of the -AL geometry in grade KX or grade PCD20-tipped inserts.

Ball Bearing Location:
Your Challenge:	Obtain the required groove and under cut with a minimum cycle time.

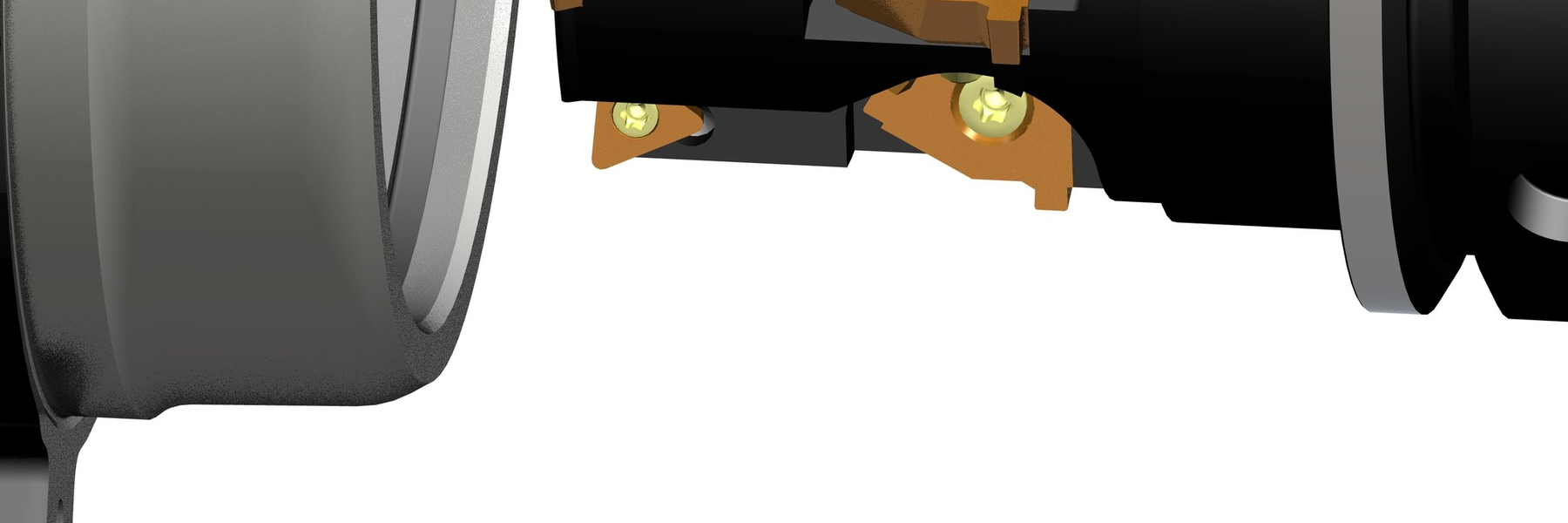

Our proven Solution:	A step multi-tooth grooving tool using tailor-made grooving inserts for the circlip groove and ISO / ANSI turning inserts to machine the under cut groove. This tool concept provides the capability to machine different workpiece materials by choosing different insert grades and cutting parameters.

Ball Bearing Location:
Your Challenge:	Establishing an efficient and secure process for the finishing cut on the bearing location.
Our proven Solution:	Maintaining high precision output while minimising cycle times, the Xfix™ reamer uses up to nine teeth to provide high feed rates, while holding tolerances as tight as IT6. Strong and stable insert cartridges ensure process security, while preloaded guide pads prevent vibration and increase stability. Your benefits include achieving tight tolerances without sacrificing the productivity of your production line.

Ball Bearing Location: Outer Diameter:
Your Challenge:	Obtain the required part geometry with minimal tools and tool changes.

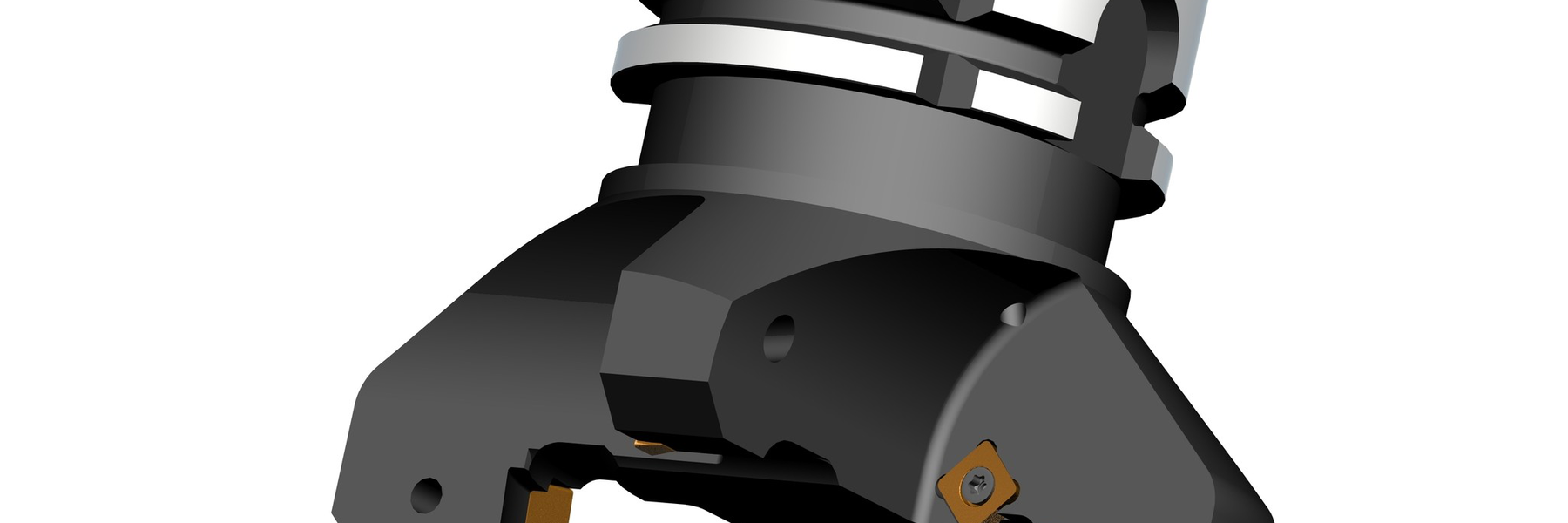

Our proven Solution:	Excellent performance results from this combination O.D. turning, radius-forming and O.D. chamfering tool that uses standard inserts for the chamfering and turning and altered standards for the radius forming. For productivity and economy, Seco has developed a complete range of new Duratomic^® grades that allows working at high cutting parameters on forged steel with TP grades and on nodular cast iron with TK grades. For aluminium steering knuckles we recommend using -AL in grade or grade or grade PCD20.
