BOOST STABILITY WITH END MILLS BUILT FOR RELIABLE RESULTSNewly redesigned Seco JSE510 Solid End Mills help secure production – with the lowest costs per meter – across common applications and materials.
Discover the product range
A budget-friendly solution that can handle any milling application in steel, stainless steel, cast iron, titanium and some aluminum with ease, the new Seco JSE510 family of solid end mills from Seco are highly versatile tools with the ideal balance between performance, tool life and value – ideal for a competitive industry where every second of tool life and ounce of machining capacity counts. Thanks to newly redesigned geometries and optimized grades, your shop can easily reduce production costs, improve process security and gain easy access to well-optimized milling performance.
Your challenge: High production costs caused by greater material and application diversity are impacting your profitability.
The Seco solution: Achieve the lowest cost per meter in steels, stainless steels, cast iron, titanium and some aluminums with a single, well-optimized family of solid end mills.
At the pace of modern production, manufacturers can’t afford unreliable process stability or poor tool life. The JSE510 family offers the productivity and security shops need thanks to redesigned geometries built for effective milling performance. High-cobalt carbide and a polished SIRA coating have been combined with an irregular tooth pitch and progressive helix to dampen vibrations and ensure high stability and long tool life, even in less rigid machines.
Your challenge: Insufficient machine or process stability causes poor tool life and inconsistent workpiece quality.
The Seco solution: Increase milling security and tool life with Seco JSE510 solid end mills’ irregular tooth pitch, progressive helix and optimized flute configurations.
A greater variety of low-volume jobs has become normal in most industries, and that means shops have had to struggle to keep up with the tooling requirements for a wider range of applications and materials. Instead, choose one simple solution – the Seco JSE510 family includes four geometries and two lengths that can handle virtually any milling application.
- JSE512: Two wide flutes for the big chips produced in axial drilling, keyway or slotting applications.
- JSE513: Three flutes for universal milling performance, in drilling, helical interpolation, ramping, full slotting and side milling.

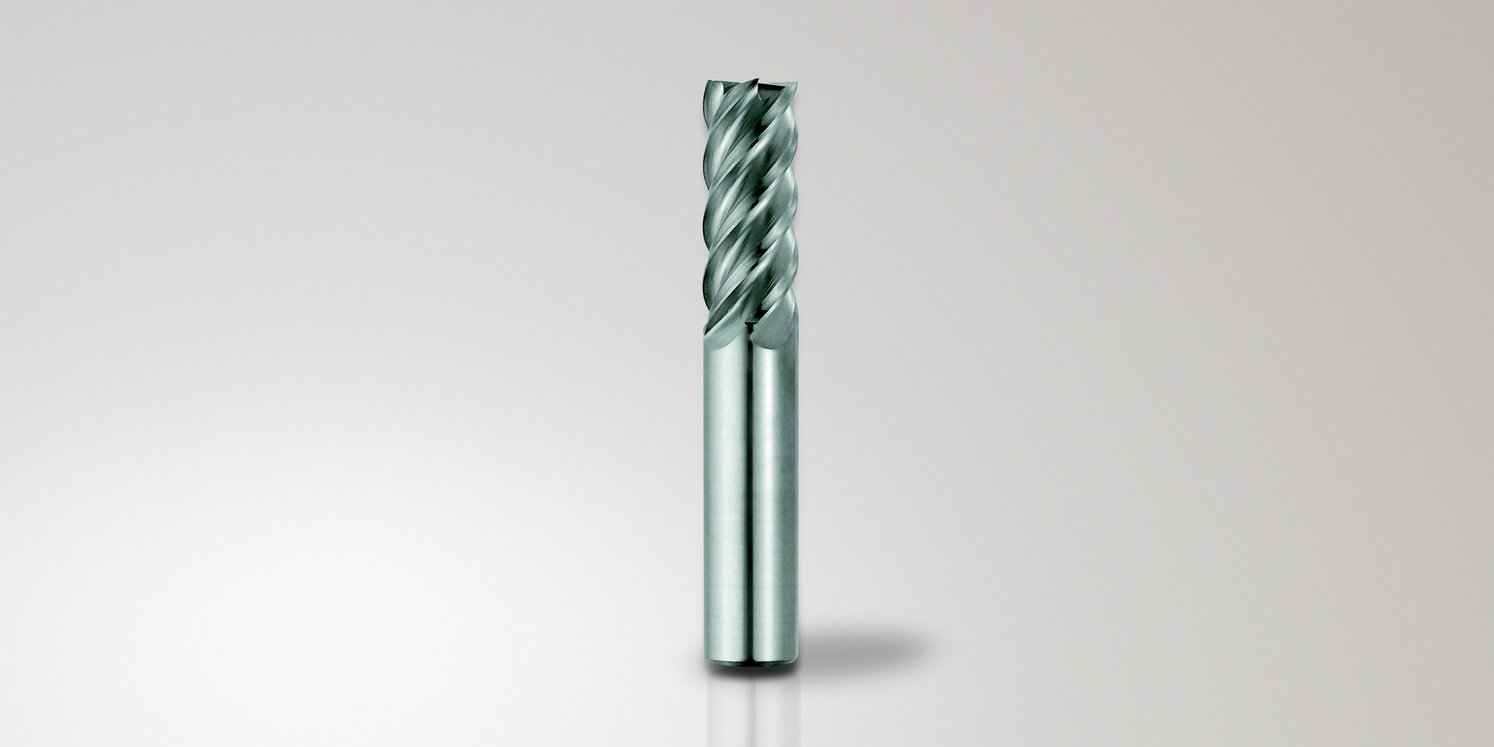

- JSE514: Four flutes for optimized side milling and 2D finishing operations.

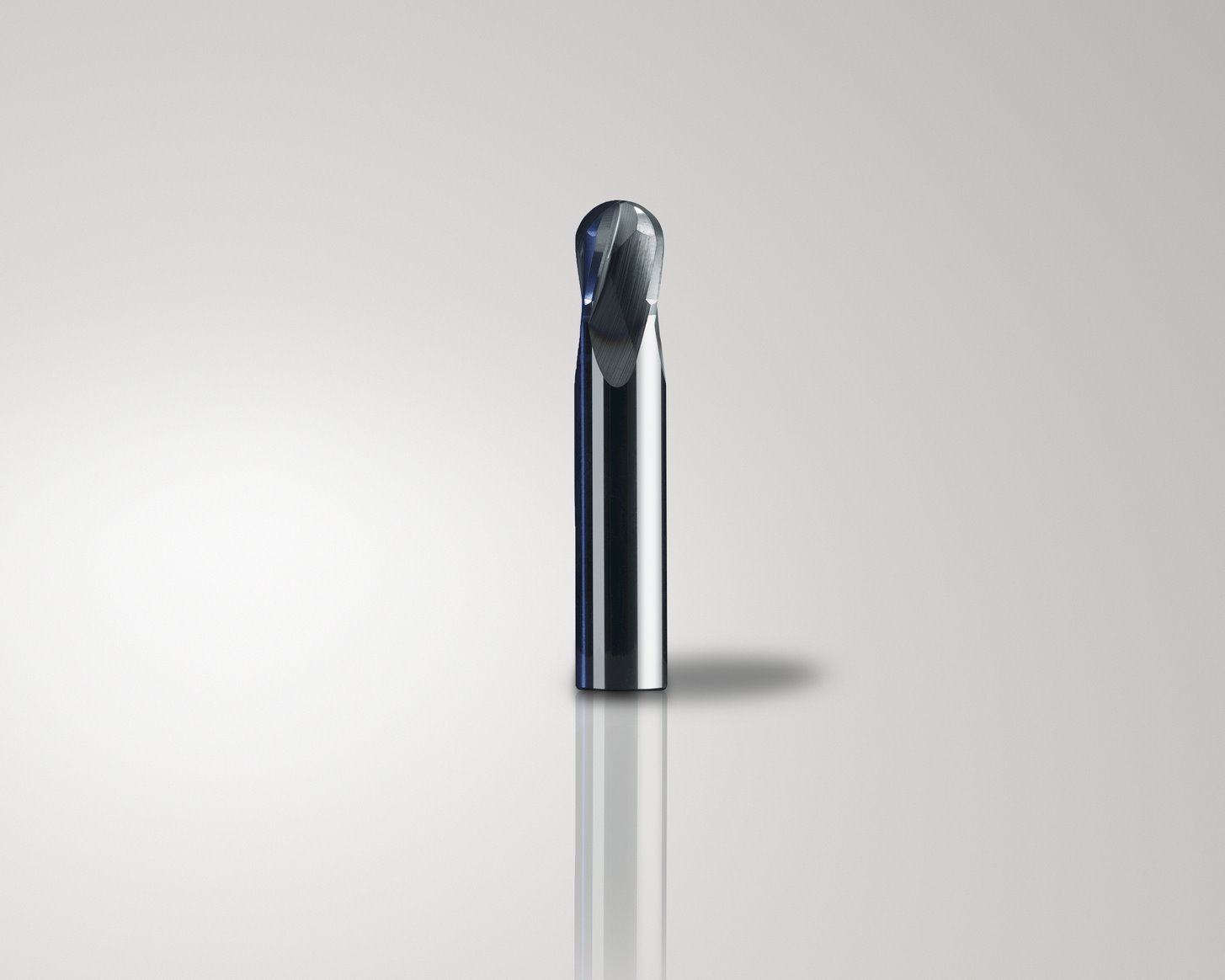

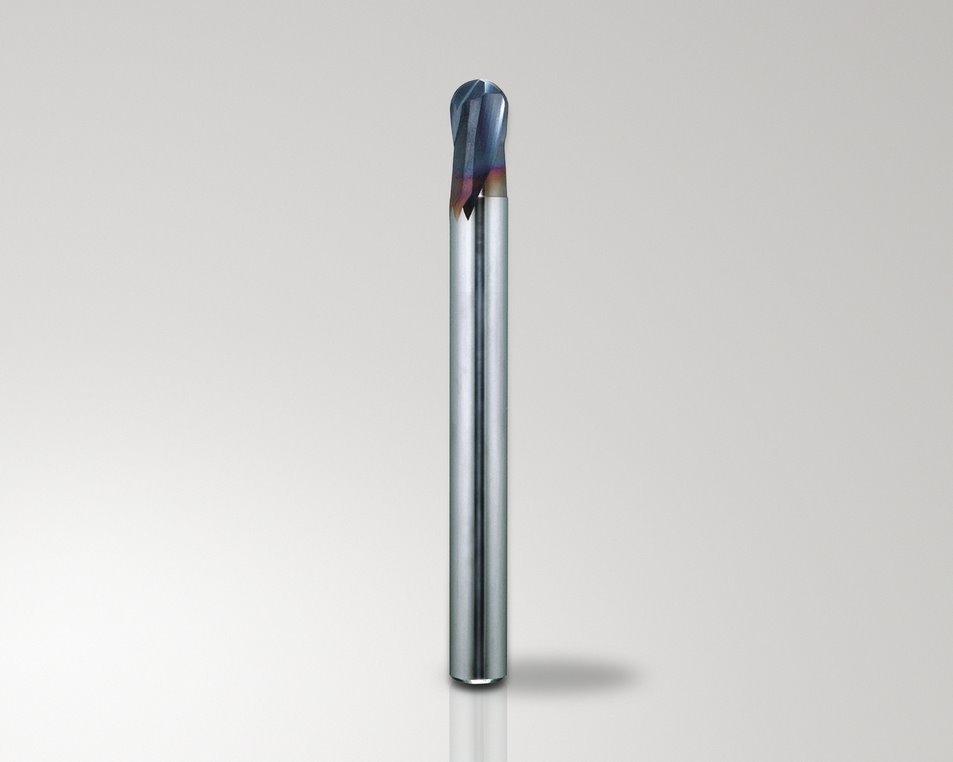

- JSB512: Ball-nose end mill geometry ideal for finishing 2.5D and 3D parts and other ball-nose applications.
Your challenge: It requires a large tool inventory to reliably mill a wider range of jobs and materials.
The Seco solution: The JSE510 family’s four geometries and two lengths are well-optimized for reliable performance across a comprehensive range of applications.
The newly redesigned JSE510 family does more than give your shop a versatile set of milling tools – these end mills come with applications expertise and customer support from Seco Tools. We leverage more than 80 years of experience to provide truly comprehensive services, all of which are aimed at making your manufacturing operations more productive and your business more successful.
Your challenge: Greater production complexity and high demands of skilled operators makes it tough to handle the pace of modern manufacturing.
The Seco solution: Seco JSE510 solid end mills are developed to be easy to implement and use for any level of operation
Your challenge: It takes too much time for operators to identify products.
The Seco solution: The Data Matrix codes are laser-etched QR-style codes that give each Seco product its own identity. All of the information about the tool, including batch and ID number, is available in less than a second by simply scanning the code using the Seco Assistant app.
